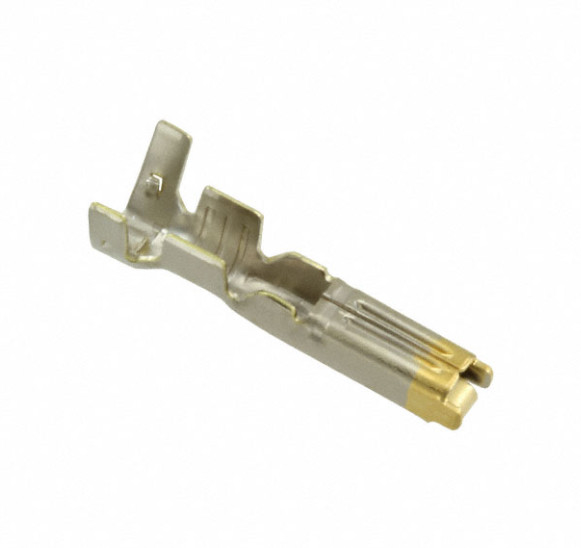

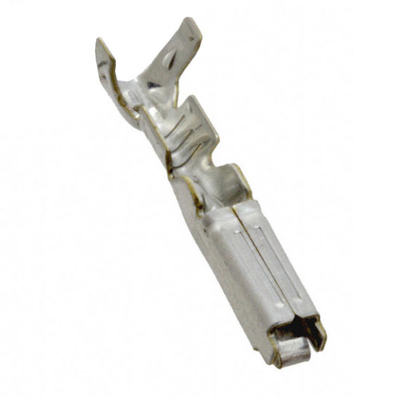

173630-1 Electronic Wire Connectors Timer Terminal , Wire Terminal Connectors AMP

173630-1 Electronic Wire Connectors Timer Terminal , Wire Terminal Connectors AMP

  • 173630-1 Electronic Wire Connectors Timer Terminal , Wire Terminal Connectors AMP
  • 173630-1 Electronic Wire Connectors Timer Terminal , Wire Terminal Connectors AMP
173630-1 Electronic Wire Connectors Timer Terminal , Wire Terminal Connectors AMP
Product Details:
Place of Origin: China
Brand Name: TE Connectivity/AMP
Certification: Rohs
Model Number: 173630-1,173630-2,173630-6,173630-7,173631-1
Payment & Shipping Terms:
Minimum Order Quantity: 440
Price: 1.5$
Packaging Details: Original packing
Delivery Time: 1-12 weeks
Payment Terms: T/T
Supply Ability: 4400000
Contact Now
Detailed Product Description
In Stock Qty:: 4400 Stock Lead Time: 4-7 Days
Packing Qty:: 440 Common Lead Time: 8 Weeks
Description: TE Connectivity AMP Connector Receptacle Timer Terminal 173630-1,173630-2,173630-6,173630-7,173631-1 Stock Price: According To The Quantity
High Light:

te connectivity connectors

,

amp automotive connectors

TE Connectivity AMP Connector Receptacle Timer Terminal 173630-1,173630-2,173630-6,173630-7,173631-1



Description:



Wire-to-Wire, Wire-to-Board and ECU Applications

• Mirror • Multimedia applications • Display screens • Airbag ECU / Safety applications • Switches • Hand free cellphone • Immobilizer • Dashboard • Safety applications • Electrically controlled trunk lid latch • Tyre pressure monitoring system • Body controller management



Specification:

Product Type Features

  • Sealable : No

  • Primary Locking Feature : Locking Lance

  • Receptacle Style : 180°

Contact Features

  • Crimp Type : F-Crimp

  • Typical Current Rating (A): 30

  • Terminal & Splice Style : Receptacle

  • Mating Tab Width : 2.8 mm [ .11 in ]

  • Mating Tab Thickness : .8 mm [ .031 in ]

  • Interface Plating : Tin (Sn)

  • Contact Termination Area Plating Material : Tin (Sn)

Termination Features

  • Termination Method : Crimp

Dimensions

  • Wire Size (mm²): 1 – 2.5

  • Wire Size Search (AWG): 14, 15, 16, 17

  • Wire Size Search (mm²): 1, 1.25, 1.3, 1.5, 2, 2.5

  • Wire Insulation Diameter : 2.1 – 3.1 mm [ .083 – .122 in ]

Usage Conditions

  • Operating Temperature Range : -40 – 130 °C [ -40 – 266 °F ]

Industry Standards

  • Agency/Standard :DIN 72 551 Part 6, DIN ISO 6722 part 3, IEC 664/664A (DIN VDE 0110)

Packaging Features

  • Packaging Quantity : 3300

  • Packaging Method : Reel

Other

  • Terminal Transmits : 25 – 40 A (Power)
