product manual

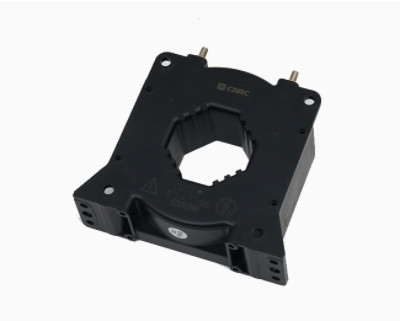

NACL-1000B-S1/SP1 magnetic balance Hall current sensor is suitable for accurate measurement of AC, DC and pulse current isolation. The primary side and the secondary side are completely insulated during measurement.
| product advantages | Applications | Reference standard |
| High precision | AC Inverter AC | GB/T 25119-2010 EN50178 EN50155 |
| Good linearity | Private server motor drive | |
| Low temperature drift | Battery powered | |
| Broadband | Converter/Inverter | |
| Quick response | UPS/SVG |
| Main electrical parameters (@±IPN, TA = 25℃) | |
| Rated measuring current IPN | 1000A |
| Measuring range IPM | ±1800A |
| Power supply voltage VC | DC±(15~24)×(1±10%)V |
| Current consumption IC (@±24V) | ≤±35mA+ISN |
| Rated measurement output ISN | 250mA |
| Turns ratio | 1:4000 |
| Load resistance RM |
@±15V, ±1000A: 0Ω~30Ω(70℃) 0Ω~8Ω(85℃) @±15V, ±1500A: 0Ω~11Ω(70℃) 0Ω~9Ω(85℃) @±24V, ±1000A: 0Ω~57Ω(70℃) 10Ω~54Ω(85℃) @±24V, ±1800A: 0Ω~25Ω(70℃) |
