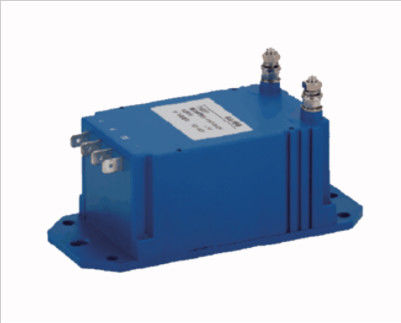

4us Response 1400VA Magnetic Modulation Voltage Sensor

4us Response 1400VA Magnetic Modulation Voltage Sensor

  • 4us Response 1400VA Magnetic Modulation Voltage Sensor
4us Response 1400VA Magnetic Modulation Voltage Sensor
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: Original packing
Delivery Time: 1-12 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description
Rated Voltage (A): 1400V Product Number: NCV1-2000V
Measuring Range: 0~±2000V Working Principle: Magnetic Modulation
Power Supply Voltage (V): ±15 × (1±5%)V Rated Measurement Output: 7V
Withstand Voltage: 7kV/50Hz/2min Operating Temperature: -40℃-+85℃
High Light:

1400VA Voltage Sensor

,

4us Response Voltage Sensor

NCV1-2000V voltage sensor

Product Details

Model specifications and technical parameters of the voltage sensor in the NCV1-2000V rail
Rated voltage (A) 1400V
Product number NCV1-2000V
Measuring range 0~±2000V
working principle Magnetic modulation
Power supply voltage (V) ± 15 × (1 ± 5%) V
Rated measurement output 7V
Basic error ≦±1 %
Linearity error ≦0.1%
Zero output error (+25 ) ≦±35mV
Response time ≦4us
Withstand voltage 7kV / 50Hz / 2min
Operating temperature -40℃-+85℃





Dimensions of NCV1-2000V rail voltage sensor



4us Response 1400VA Magnetic Modulation Voltage Sensor 0
