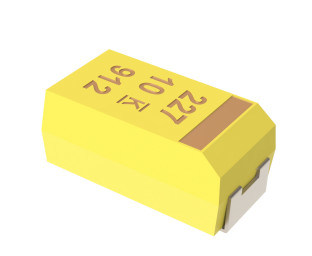

Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed

Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed

    • Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed
  • Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed

    Product Details:

    Place of Origin: USA
    Brand Name: Kemet
    Certification: ISO 9001 ISO/TS 16949 ISO 14001
    Model Number: T498A475M010ATE2K9

    Payment & Shipping Terms:

    Minimum Order Quantity: 100000
    Price: 0.016$
    Packaging Details: 100
    Delivery Time: 7 days
    Payment Terms: T/T
    Supply Ability: 100000
    Contact Now
    Detailed Product Description
    Meterial: Kemet MnO2 Tantalum T498A475M010ATE2K9 Series: T491
    Style: SMD Chip RoHS:: Yes
    Dielectric:: MnO2 Tantalum AEC-Q200: Yes
    Features:: Low ESR Termination:: Tin
    Shelf Life: 156 Weeks MSL:: 1
    High Light:

    t491 capacitor

    ,

    low esr tantalum capacitor



    Kemet MnO2 Tantalum T498A475M010ATE2K9



    Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed 0

    Overview:

    The KEMET T498 is a high temperature product that offers optimum performance characteristics

    in applications with operating temperatures up to 150°C. Advanced materials and testing allow T498

    AUTO to perform with a reliability level of 0.5%/1000 hours at rated voltage and temperature. This

    series is classified as moisture sensitivity level (MSL) 1 under J STD 020: unlimited floorlife time at

    ≤ 30°C/85% RH.



    The T498 is available in five standard EIA case sizes, with RoHS compliant terminations as standard.



    Benefits

    •  ESR values down to 5 mΩ

    • Stable capacitance across temperature and voltage

    • No aging effects

    • High ripple handling

    • Volumetrically efficient

    • High frequency capacitance retention

    • 100% accelerated steady state aging

    • 100% surge current tested

    • Halogen-free epoxy and RoHS compliant


    Specification:
    Capacitance: 4.7 uF
    Capacitance Tolerance: 20%
    Voltage DC 10 VDC (85C), 7.97 VDC (125C), 5 VDC (150C)
    Dielectric Withstanding Voltage: 80 VDC
    Temperature Range  -55/+150°C
    Temperature Coefficient: C0G
    Dissipation Factor: 4.50% 120Hz 20C
    Resistance: 2900 mOhms (100kHz)
    Ripple Current:  161 mAmps (100kHz 25C), 144.9 mAmps (85C), 48.3 mAmps (150C)
    Leakage Current: 0.5 uA (5min 20C)

    Packing Detail:

    Weight: 58.6 mg
    Packaging: T&R, 178mm
    Packaging Quantity: 2000




    Dimensions:

    Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed 1Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed 2




    Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed 3

    Kemet MnO2 Low Esr Tantalum Capacitor T498A475M010ATE2K9 RoHS Passed 4
