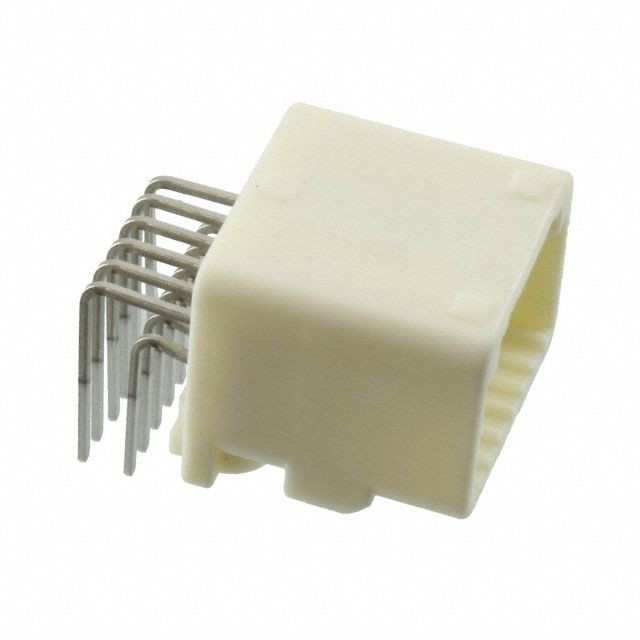

TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1

TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1

  • TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1
  • TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1
TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1
Product Details:
Place of Origin: China
Brand Name: TE Connectivity/AMP
Certification: Rohs
Model Number: 1318772-1,1379662-5 ,1318774-1
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: 1.5$
Packaging Details: Original packing
Delivery Time: 1-12 weeks
Payment Terms: T/T
Supply Ability: 48000
Contact Now
Detailed Product Description
In Stock Qty:: 48000 Stock Lead Time: 4-7 Days
Packing Qty:: 100 Common Lead Time: 8 Weeks
Product Name: TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers And Housing 1318772-1,1379662-5 ,1318774-1 Stock Price: According To The Quantity
High Light:

te connectivity connectors

,

amp automotive connectors

TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1 ​



Description:

Product Features

  •  TH 025 connectors were designed to provide better connections and performance while securing higher density in limited spaces as required in advanced electronic automotive control systems.
  •  Another feature is a unique contact design to resist fretting corrosion effectively while employing a lower contact force. As a result, the low insertion force of TH 025 connectors allows a lower connector mating force while offering high density for easy handling.
  •  This small pitch can help customers to reduce space and weight.
  •  TH 025 connectors feature a pitch of just 2.2mm, compared to the current standard pitch of 2.54mm.
  •  TH 025 connector Series have been originally designed in Japan. A European version has been implemented, in order to fulfil the European customer requirements as: • Mechanical coding • Color coding • Reflow leadfree process for headers.
  •  TH European connectors are available in a full range from 4 to 40 positions.

Application

  •   Wire-to-Wire, Wire-to-Board and ECU Applications

•  Mirror •  Multimedia applications •  Display screens •  Airbag ECU / Safety applications •  Switches •  Hand free cellphone •  Immobilizer • Dashboard •  Safety applications •  Electrically controlled trunk lid latch •  Tyre pressure monitoring system •  Body controller management



Specification:

Product Type Features

  •  Connector Style : Housing for female terminals

  •  Connector System : Wire-to-Wire

  •  Sealable : No

  •  Hybrid Connector : No

  •  Primary Locking Feature : On the Terminal

  •  Strain Relief : No

  •  Row-to-Row Spacing : 3 mm [ .118 in ]




Configuration Features

  • Number of Positions : 8

  • Number of Rows : 2




Electrical Characteristics

  • Nominal Voltage Architecture (V): 12

  • Operating Voltage (VDC): 12




Body Features

  • Color : White

  • Cable Exit Angle : 90°

  • Body Material : PBT




Contact Features

  • Mating Tab Width : .64 mm [ .025 in ]




Mechanical Attachment

  • Mounting Feature : Without

  • Terminal Position Assurance : Yes

  • Polarized : Yes




Housing Features

  • Centerline (Pitch) : 2.2 mm [ .087 in ]




Dimensions

  • Width : 33.9 mm [ 1.335 in ]

  • Height : 14.7 mm [ .579 in ]

  • Length : 23 mm [ .906 in ]




Usage Conditions

  • Operating Temperature Range : -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Circuit Application : Signal




Industry Standards

  • UL Flammability Rating : UL 94-HB

Packaging Features

  • Packaging Method : Box

  • Packaging Quantity : 100




Other

  • Connector Position Assurance Capable : No

  • Serviceable : Yes




Related products:

TE Connectivity AMP Connector TH 025 Connector 8P Vertical Headers and Housing 1376350-1, 1376352-1

TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1 0TE Connectivity AMP Connector TH 025 Connector 12P Right Angle Headers and Housing 1318772-1,1379662-5 ,1318774-1 1

Receptacle

1318774-1,1379659-5

Terminal 1123343-1,1123343-2,
Header 1318772-1,1318772-2,1318772-3,1318772-4,1318772-5,1318772-6,1318772-7,1318772-8,1318772-9,1-1318772-2, 2-1318772-2,6376772-3,6376772-4,
