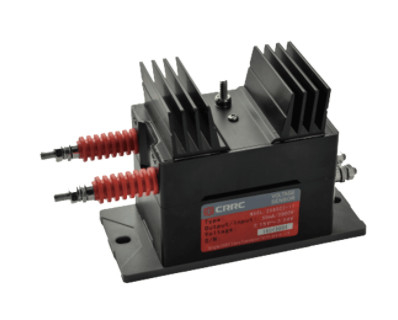

60us Response 25mA Magnetic Balance Voltage Sensor

60us Response 25mA Magnetic Balance Voltage Sensor

  • 60us Response 25mA Magnetic Balance Voltage Sensor
60us Response 25mA Magnetic Balance Voltage Sensor
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 100
Packaging Details: Original packing
Delivery Time: 1-12 weeks
Payment Terms: T/T
Contact Now
Detailed Product Description
Rated Voltage (A): 2000V Measuring Range: 0~±3000V
Working Principle: Magnetic Balance Power Supply Voltage (V): ±15 × (1±5%)V
Rated Measurement Output: 25mA Basic Error: ≦±0.7 %
Linearity Error: ≦0.1% Zero Output Error (+25 ℃ ): ≦±0.2mA
High Light:

60us Response Voltage Sensor

,

25mA Voltage Sensor

NVCL.2000C2-11 voltage sensor

Product Details

NVCL.2000C2-11 Model specifications and technical parameters of the voltage sensor in the track
Rated voltage (A) 2000V
Product number NVCL.2000C2-11
Measuring range 0~±3000V
working principle Magnetic balance
Power supply voltage (V) ± 15 × (1 ± 5%) V
Rated measurement output 25mA
Basic error ≦±0.7 %
Linearity error ≦0.1%
Zero output error (+25 ) ≦ ± 0.2mA
Response time ≦60us
Withstand voltage 9kV/50Hz/2min
Operating temperature -40℃-+85℃





NVCL.2000C2-11 Dimensional Drawing of Voltage Sensor in Rail



60us Response 25mA Magnetic Balance Voltage Sensor 0
