| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | Original packing |
| Delivery Time: | 1-12 weeks |
| Payment Terms: | T/T |
| Rated Voltage (A): | 1500V | Measuring Range: | 0～±2250V |
|---|---|---|---|
| Product Number: | NCV1-2250/SP3 | Power Supply Voltage (V): | ±15 × (1±5%)V |
| Linearity Error: | ≦0.1% | Zero Output Error (+25 ℃ ): | ≦±0.25mA |
| Response Time: | ≦4us | Withstand Voltage: | 7kV/50Hz/2min |
| Highlight: | 2250V Voltage Measuring Transducers,50mA Voltage Measuring Transducers |
||

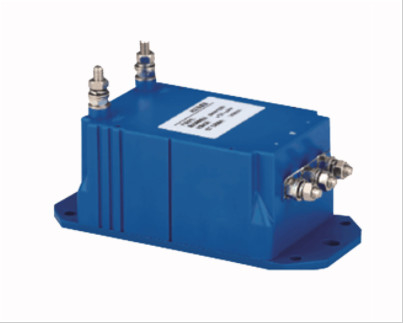

| Model specifications and technical parameters of the voltage sensor in the NCV1-2250/SP3 rail | |
| Rated voltage (A) | 1500V |
| Product number | NCV1-2250/SP3 |
| Measuring range | 0～±2250V |
| working principle | Magnetic modulation |
| Power supply voltage (V) | ± 15 × (1 ± 5%) V |
| Rated measurement output | 50mA |
| Basic error | ≦±1 % |
| Linearity error | ≦0.1% |
| Zero output error (+25 ℃ ) | ≦ ± 0.25mA |
| Response time | ≦4us |
| Withstand voltage | 7kV / 50Hz / 2min |
| Operating temperature | -40℃-+85℃ |
Dimensions of NCV1-2250/SP3 rail voltage sensor
